NO-Normal-EF and NO-Normal-EF-2D

PMK NO-03-3P-EF • 3-point measuring heads for automated meas.
“True" 3-point precision meas. technology. The special geometry of the measuring heads with insertion chamfer (EF) prevents sticking.

PMK-NO-03-3P-EF · Precision measuring head in 3-point design
delivered with X dimension of 6mm and M10x1 thread. Repeat accuracy at IT 8 < 1µ. The measurement range is 0.2mm and can be extended to up to 0.6mm upon request. Self-centering, with insertion chamfer. Specify the smallest hole dimension when ordering.
Ordering example: øworkpiece = 20H7 = PMK-NO-03-3P-EF-2D-20

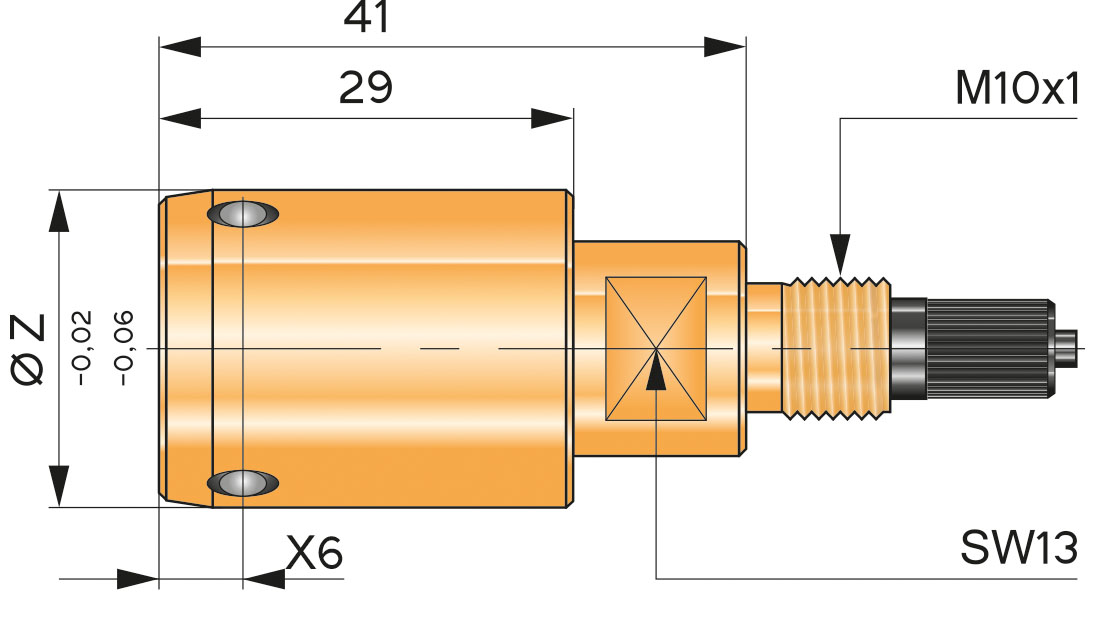

PMK-NO-3P-15-40 mm

PMK-NO-3-3P-EF_15-40mm

PMK-NO-3P-EF-40-50 mm

PMK-NO-3-3P-EF_40-50mm

PMK-NO-3P-50-100 mm

PMK-NO-3-3P-EF_50-100mm

 PMK-NO-3P-XV-15-40-mm

PMK-XV Variables X-Maß


NO-03-3P-EF-2D
PMK NO-03-3P-EF-2D • 3-point measuring heads for automated measuring. The special geometry of the measuring heads with insertion chamfer and 2 tapered diameters prevents sticking

PMK-NO-03-3P-EF-2D · Precision measuring head   in 3-point design
delivered with X dimension of 6mm and M10x1 thread. Repeat accuracy at IT 8 < 1µ. The measurement range is 0.2mm and can be extended to up to 0.6mm upon request. Self-centering, with insertion chamfer. Tapered measuring body prevents sticking. Specify the smallest hole dimension when ordering.
Ordering example: øworkpiece = 20H7 = PMK-NO-03-3P-EF-20

PMK-NO-3P-EF-2Z-15-40 mm

PMK-NO-3-3P-EF-2D_15-40mm

PMK-NO-3P-EF-2Z-40-50 mm

PMK-NO-3-3P-EF-2D_40-50mm

PMK-NO-3P-EF-2Z-50-100 mm

PMK-NO-3-3P-EF-2D_50-100mm







Appropriate accessories such as depth stop oder holders you will find here:

Accessories
