Centering holders

Centering holder for automated measurement
compensate for axial errors in centering of the workpiece and prevent damages to both the measuring head and the measurement object. The axial freedom of movement is ± 0.5 mm. The set nut fastens the play once adjusted. Available with M6x0.75 mm or M10x1 mm threads. Thread reducers  make it possible to use measuring heads with smaller threads such as M6x0.75 mm or M3.5x0.35 mm on holders and float holders with M10x1 mm threads.

ZH-PMK-02-13

ZH PMK-02-13

ZH-PMK-02-13 · Centering holder with M6x0.75 thread
for automated measurement, ø 13mm, length 57mm.
Axial freedom of movement ±0.5mm, clamping ring with Allen screw.

ZH-PMK-02-20

ZH PMK-02-20

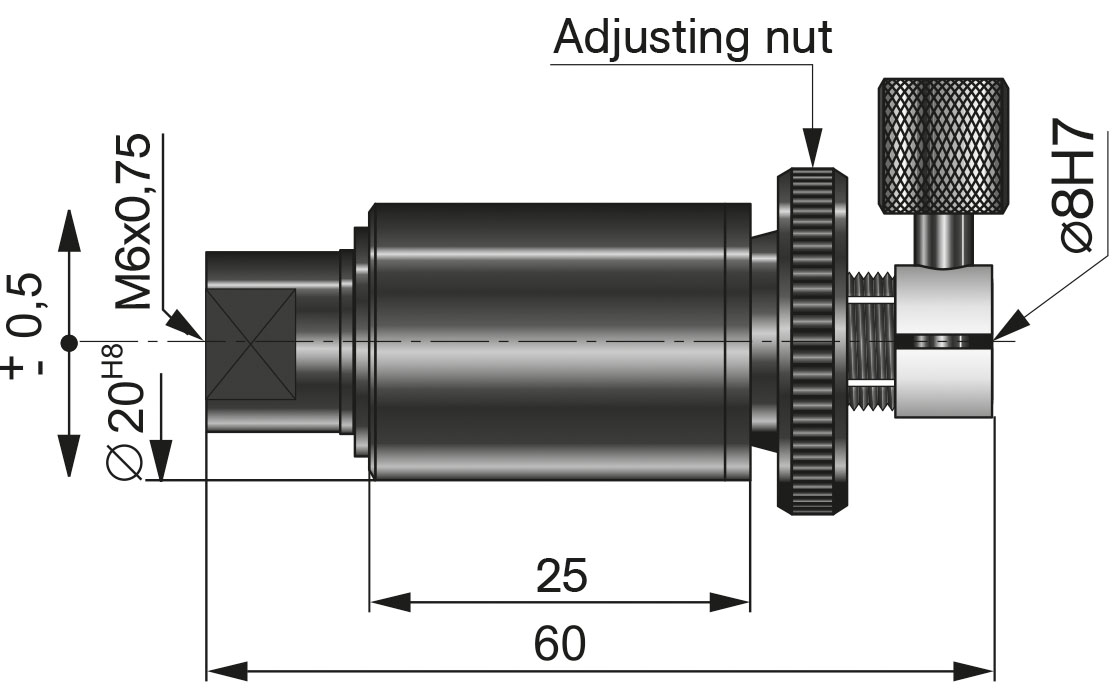

ZH-PMK-02-20 · Centering holder with M6x0.75 thread
for automated measurement, ø 20mm, length 60mm.
Axial freedom of movement ±0.5mm, clamping ring with knurled screw.



ZH-PMK-03-20

ZH-PMK-03-20

ZH-PMK-03-20 · Centering holder with M10x1 thread
for automated measurement, ø 20mm, length 60mm.
Axial freedom of movement ±0.5mm, clamping ring with knurled screw.

ZH-PMK-03-30

ZH-PMK-03-30


ZH-PMK-03-30 · Centering holder with M10x1 thread
for automated measurement, ø 30mm, length 65mm.
Axial freedom of movement ±0.5mm, clamping ring with knurled screw.



Example of application:

ZH-PMK-03-20 Centering holder
with cylindrical PMK measuring head and analog precision indicator.
ZH-PMK-03-20 Centering holder
with chamfered measuring head and analog special dial gauge.

ZH-PMK-03-60mm

ZH-PMK-03-30 Centering holder
with conical PMK measuring head and digital display with factor setting.



ZH-PMK-VDS Centering holders for automated measurement
compensate for axial errors in centering of the workpiece and prevent damage to both, the measuring head and the measurement object. The twist protection prevents the display from twisting when the workpiece rotates. The axial freedom of movement is ± 0.5mm. The set nut fastens the play once adjusted. Available with M6x0.75mm or M10x1mm threads. Thread reducers  make it possible to use measuring heads with smaller threads such as M6x0.75mm or M3.5x0.35mm on holders and float holders with M10x1 mm threads.

ZH-PMK-02-VDS-13

ZH PMK-02-VDS-13

ZH-PMK-02-VDS-13 ·
Centering holder
for automated measurement, with M6x0.75mm thread, ø 13mm, length 57mm.
Axial freedom of movement ±0.5mm, clamping ring with Allen screw.



ZH-PMK-03-VDS-20

ZH-PMK-03-VDS-20

ZH-PMK-03-VDS-20 · Centering holder
for automated measurement, with M6x0.75mm thread,ø 20 mm, length 60mm.
Axial freedom of movement ±0.5mm, clamping ring with knurled screw.

ZH-PMK-03-VDS-20

ZH-PMK-03-VDS-30


ZH-PMK-03-VDS-30 · Centering holder
for automated measurement, with M6x0.75mm thread, ø 30 mm, length 65mm.
Axial freedom of movement ±0.5mm, clamping ring with knurled screw.



Example of application:

ZH-PMK-03-VDS-20
Centering holder
with cylindrical PMK measuring head and analog precision indicator.
ZH-PMK-03-VDS-20
Centering holder
with chamfered measuring head and analog special dial gauge.

ZH-PMK-03-VDS-30
Centering holder
with conical PMK measuring head and digital display with factor setting.
